Foundation Damage Exposed
Notice the severe concrete erosion beneath the wall-water infiltration had washed away supporting soil and weakened the base.

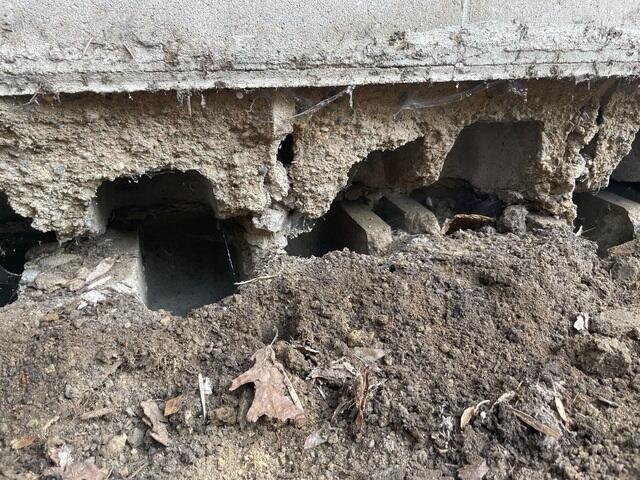

Void Beneath Foundation
Large gaps show where the footing had lost its support, contributing to the one-inch settlement in the garage.

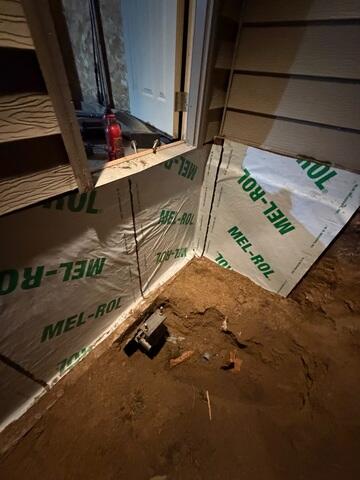

Pier Brackets Installed
Helical pier brackets were securely attached to the footing, transferring the structure's load to the steel piers.

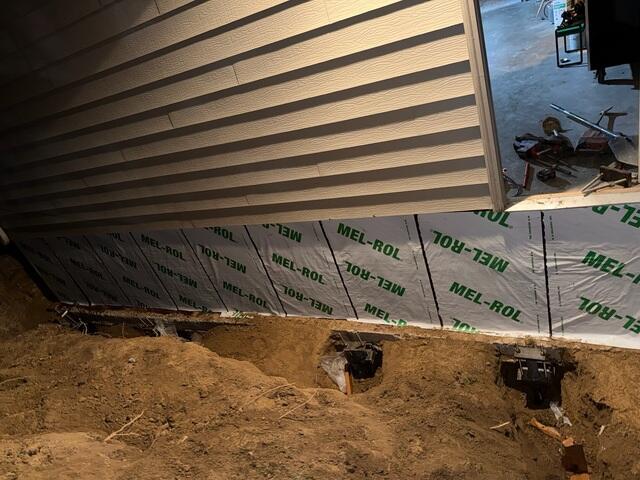

Waterproofing and Stabilization
MEL-ROL waterproofing membrane was applied for added protection against future moisture intrusion, completing the stabilization process.
Excavation and Preparation
The soil around the garage foundation was excavated to expose the deteriorated footing and prepare for pier installation.
