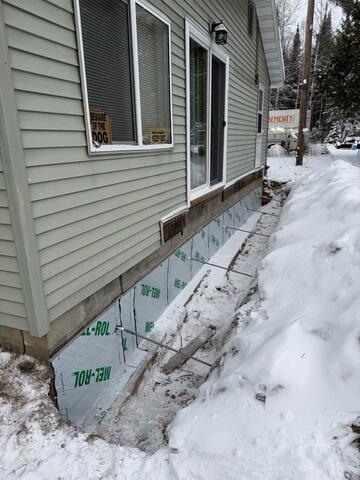

Exterior Excavation for Anchor Installation
Exterior trench excavated to access stable soil for the earth anchors. This step ensures the GeoLock® system can counteract soil pressure and support long-term wall stability.

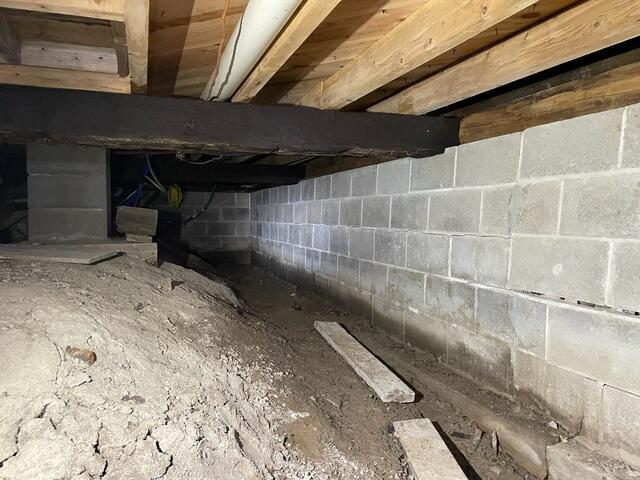

Before: Bowing Foundation Wall
Before installation, the foundation wall showed significant inward bowing and cracking-clear indicators of foundation failure that required immediate attention.

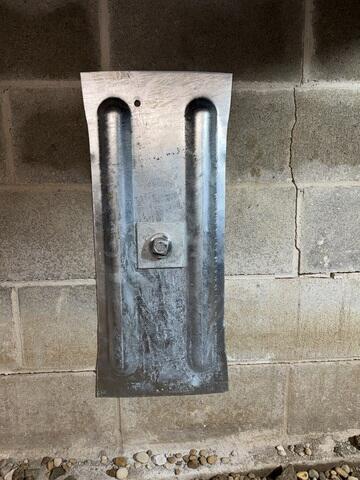

Close-Up of GeoLock® Anchor Plate
Close-up view of a freshly installed GeoLock® wall anchor plate, securely tightened to stabilize the failing block wall.

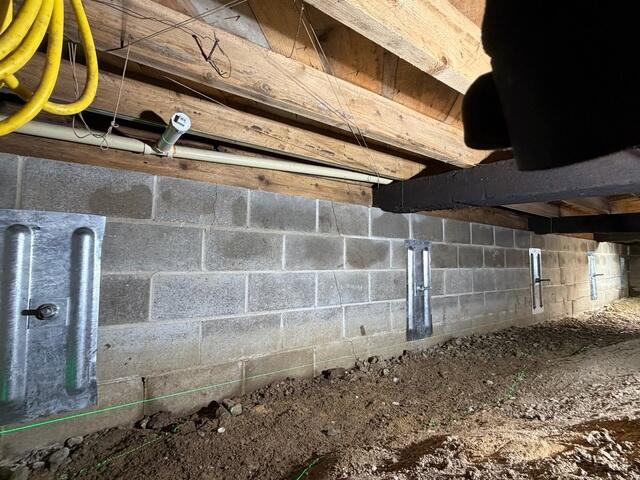

Interior Wall with Multiple Anchors Installed
GeoLock® Wall Anchors installed along the bowing foundation wall inside the crawl space, providing immediate stabilization and preventing further inward movement.

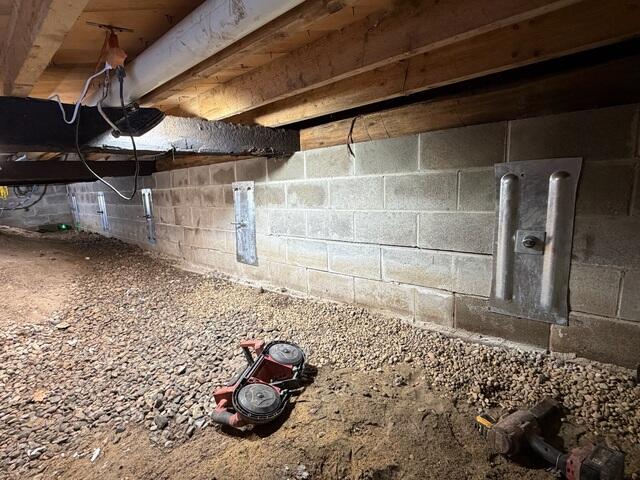

Anchors Installed and Wall Secured
Completed installation of the GeoLock® Wall Anchor System. The stabilized wall is now protected from further movement, restoring structural integrity to the home.
